IPL1-106-01-L-S-K

Samtec, Inc.

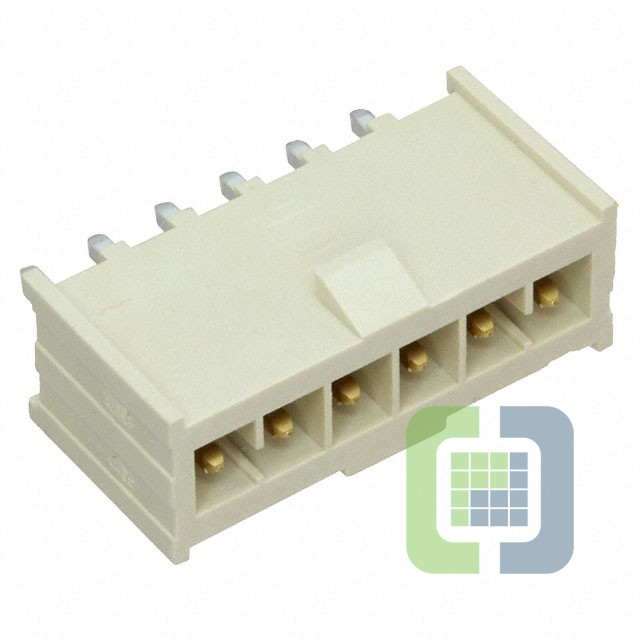

IPL1-106-01-L-S-K Gallery image caption
In Stock: 464

Can ship immediately

Pricing:
  • 1$2.52
  • 34$2.14972
  • 102$1.96271
  • 510$1.63561
  • 1,020$1.40195
  • 5,032$1.24307

Quote It

Technical Details

  • Series:Mini Mate® IPL1
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:6
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:0.215" (5.46mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:-
  • Insulation Height:0.320" (8.13mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):-
  • Voltage Rating:675VAC, 954VDC
