IPT1-115-01-S-D-RA
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant

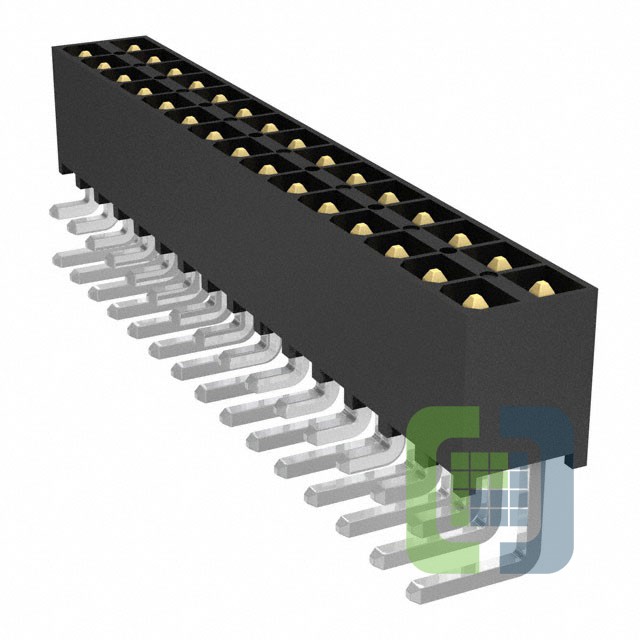

- DescriptionCONN HEADER R/A 30POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet IPT1-115-01-S-D-RA Datasheet
-
ECAD Model
- Share
In Stock: 199
Can ship immediately
Pricing:
- 1$6.59
- 14$6.32671
- 112$5.272
- 504$4.4812
- 1,008$3.8222
Quote It
Technical Details
- Series:Mini Mate® IPT1
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:30
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.155" (3.94mm)
- Contact Length - Post:0.090" (2.29mm)
- Overall Contact Length:-
- Insulation Height:0.200" (5.08mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):2.3A per Contact
- Voltage Rating:775VAC, 1095VDC
