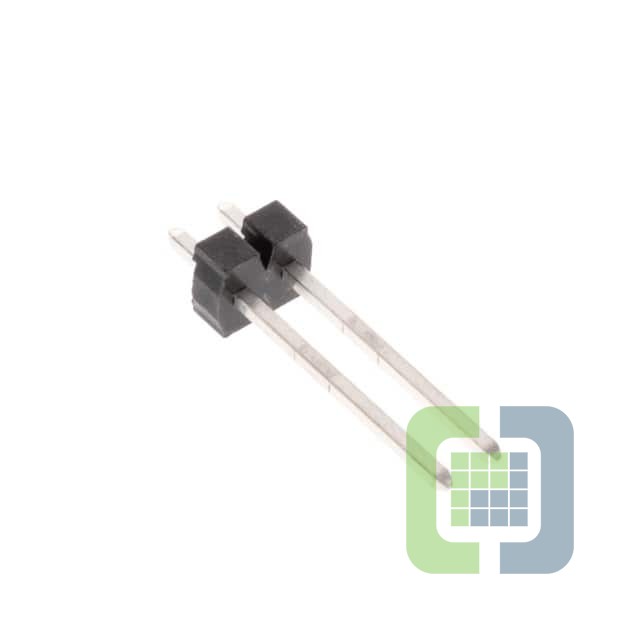

FWJ-02-04-T-S
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 2POS 3.96MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet FWJ-02-04-T-S Datasheet
-
ECAD Model
- Share
In Stock: 949
Can ship immediately
Pricing:
- 1$0.55
- 10$0.51606
- 100$0.39565
- 500$0.34405
- 1,000$0.28383
- 5,000$0.24944
- 10,000$0.23223
Quote It
Technical Details
- Series:FWJ
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.156" (3.96mm)
- Number of Positions:2
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.809" (20.55mm)
- Contact Length - Post:0.156" (3.96mm)
- Overall Contact Length:1.090" (27.69mm)
- Insulation Height:0.125" (3.18mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polybutylene Terephthalate (PBT)
- Features:-
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:600VAC, 845VDC
