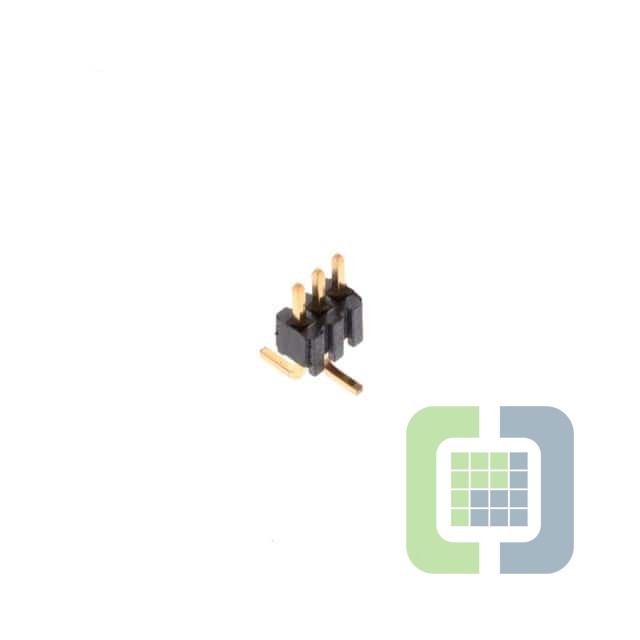

FTR-103-02-G-S
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 3POS 1.27MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet FTR-103-02-G-S Datasheet
-
ECAD Model
- Share
In Stock: 412
Can ship immediately
Pricing:
- 1$0.61
- 10$0.57611
- 100$0.44169
- 500$0.38407
- 1,000$0.31686
- 5,000$0.27845
- 10,000$0.25925
Quote It
Technical Details
- Series:FTR
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:3
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.100" (2.54mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Gold
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3.1A per Contact
- Voltage Rating:-
