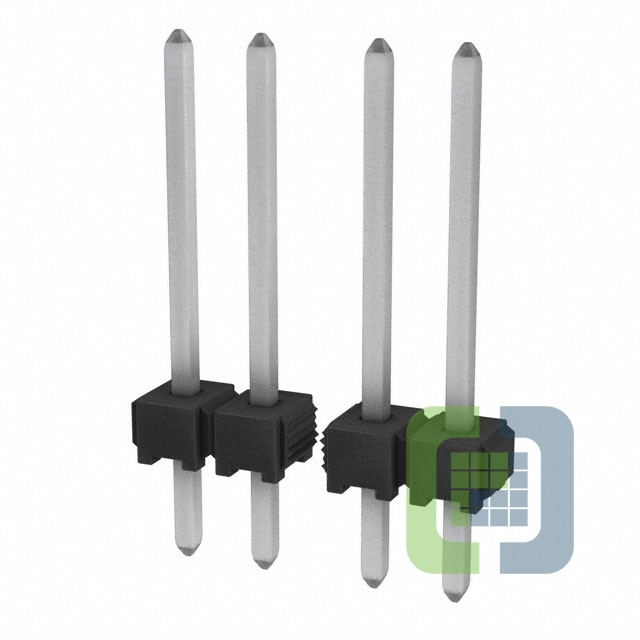

MTMM-105-08-T-S-320
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 5POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet MTMM-105-08-T-S-320 Datasheet
-
ECAD Model
- Share
In Stock: 876
Can ship immediately
Pricing:
- 1$0.68
- 10$0.6379
- 100$0.48906
- 500$0.42527
- 1,000$0.35085
- 5,000$0.30832
- 10,000$0.28706
Quote It
Technical Details
- Series:MTMM
- Package:Bulk
- Part Status:Active
- Connector Type:Header, Cuttable
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:5
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.320" (8.13mm)
- Contact Length - Post:0.097" (2.47mm)
- Overall Contact Length:0.476" (12.09mm)
- Insulation Height:0.059" (1.50mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:-
