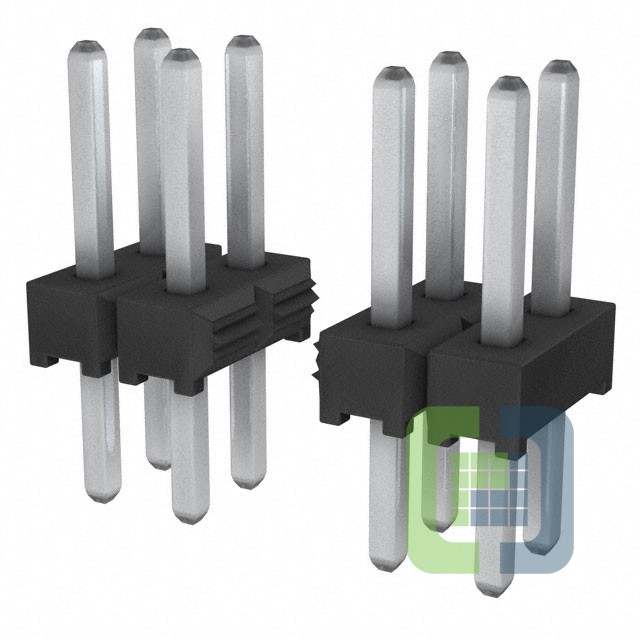

TMM-105-02-T-D
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- Description2MM TERMINAL STRIP
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet TMM-105-02-T-D Datasheet
-
ECAD Model
- Share
In Stock: 247
Can ship immediately
Pricing:
- 1$0.76
- 10$0.71615
- 100$0.54905
- 500$0.47743
- 1,000$0.39388
- 5,000$0.34614
- 10,000$0.32227
Quote It
Technical Details
- Series:TMM
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:10
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.146" (3.71mm)
- Contact Length - Post:0.118" (3.00mm)
- Overall Contact Length:0.323" (8.20mm)
- Insulation Height:0.059" (1.50mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):3.2A per Contact
- Voltage Rating:-
