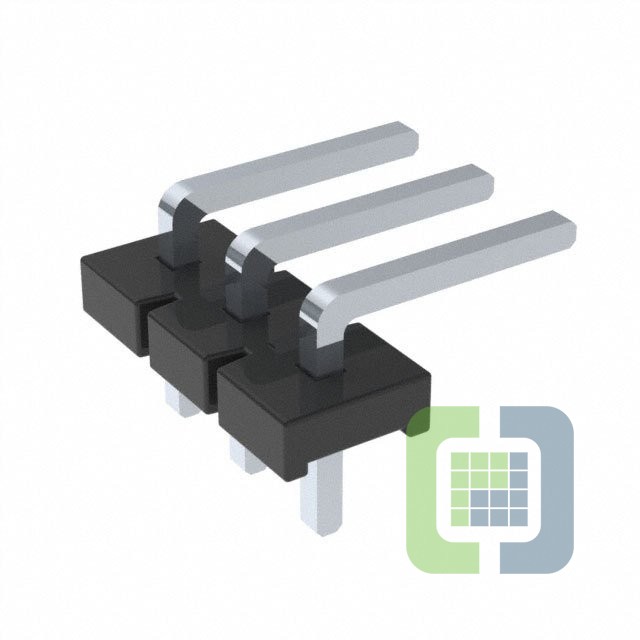

HPM-03-02-T-S-RA
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 3POS 5.08MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet HPM-03-02-T-S-RA Datasheet
-
ECAD Model
- Share
In Stock: 242
Can ship immediately
Pricing:
- 1$1.11
- 10$0.92431
- 100$0.68467
- 500$0.54773
- 1,000$0.49639
- 5,000$0.43648
- 10,000$0.42793
Quote It
Technical Details
- Series:HPM
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.200" (5.08mm)
- Number of Positions:3
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.318" (8.08mm)
- Contact Length - Post:0.180" (4.57mm)
- Overall Contact Length:-
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Polyester, Glass Filled
- Features:-
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:850VAC, 1200VDC
