MTMM-106-09-T-D-090
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant

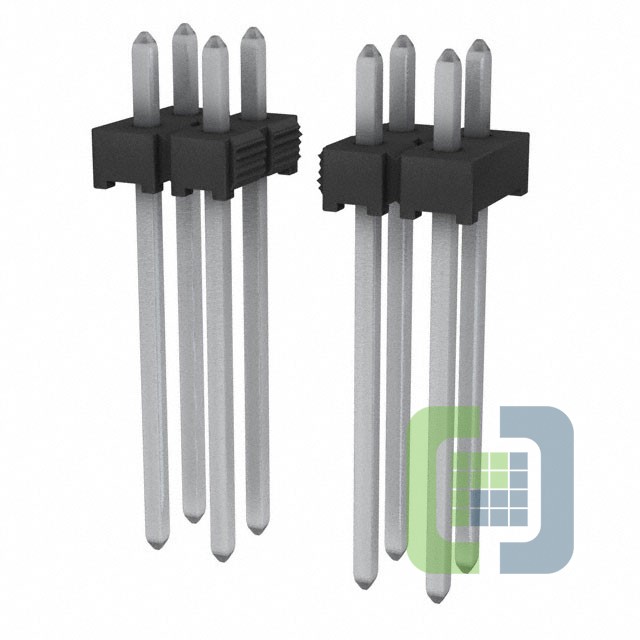

- DescriptionCONN HEADER VERT 12POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet MTMM-106-09-T-D-090 Datasheet
-
ECAD Model
- Share
In Stock: 706
Can ship immediately
Pricing:
- 1$1.29
- 10$1.13344
- 100$0.97754
- 500$0.7998
- 1,000$0.71093
- 5,000$0.62206
- 10,000$0.59096
Quote It
Technical Details
- Series:MTMM
- Package:Bulk
- Part Status:Active
- Connector Type:Header, Cuttable
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:12
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.090" (2.29mm)
- Contact Length - Post:0.386" (9.80mm)
- Overall Contact Length:0.535" (13.59mm)
- Insulation Height:0.059" (1.50mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:-
