TMS-105-01-L-D

Samtec, Inc.

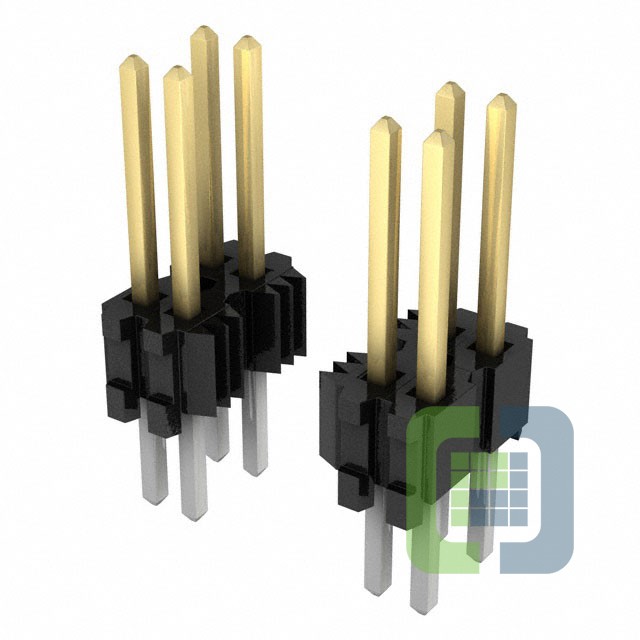

TMS-105-01-L-D Gallery image caption
In Stock: 480

Can ship immediately

Pricing:
  • 1$1.36
  • 10$1.19438
  • 100$1.03031
  • 500$0.84298
  • 1,000$0.74932
  • 5,000$0.65565
  • 10,000$0.62287

Quote It

Technical Details

  • Series:TMS
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:10
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.450" (11.43mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):5A per Contact
  • Voltage Rating:-
