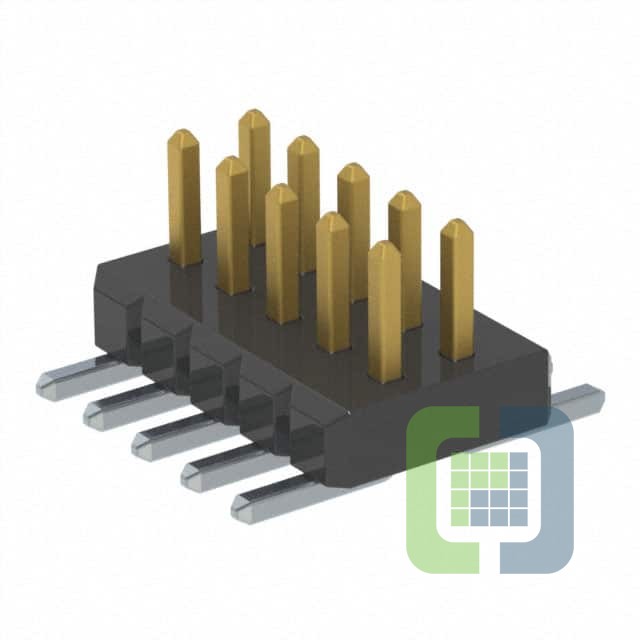

FTM-105-03-L-DV
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 10POS 1MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 628
Can ship immediately
Pricing:
- 1$1.94
- 10$1.76428
- 100$1.51229
- 500$1.26025
- 1,000$1.08021
- 5,000$0.95778
- 10,000$0.93618
Quote It
Technical Details
- Series:FTM
- Package:Tube
- Part Status:Active
- Connector Type:Header, Cuttable
- Contact Type:Male Pin
- Pitch - Mating:0.039" (1.00mm)
- Number of Positions:10
- Number of Rows:2
- Row Spacing - Mating:0.039" (1.00mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.065" (1.65mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.038" (0.97mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):2.8A per Contact
- Voltage Rating:-
