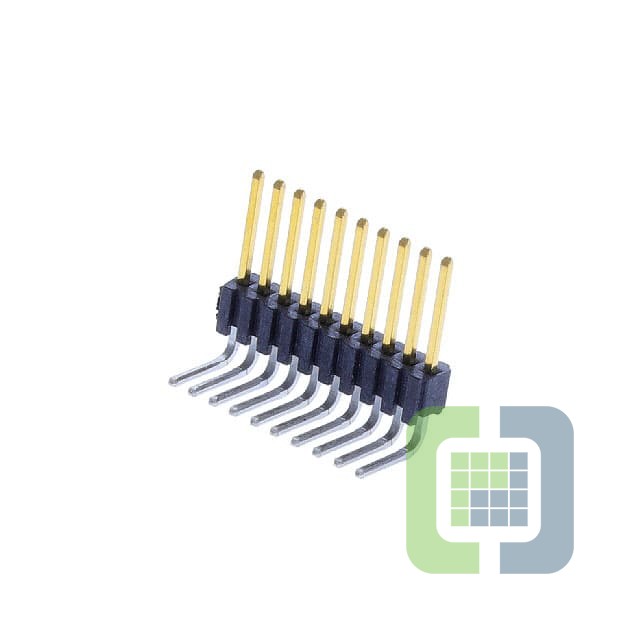

TMS-110-01-S-S-RA
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- Description.050" (1.27MM) MICRO HEADER
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 201
Can ship immediately
Pricing:
- 1$2.07
- 10$1.88182
- 100$1.61283
- 500$1.34405
- 1,000$1.15202
- 5,000$1.02146
- 10,000$0.99843
Quote It
Technical Details
- Series:TMS
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:10
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.230" (5.84mm)
- Contact Length - Post:0.140" (3.56mm)
- Overall Contact Length:-
- Insulation Height:0.098" (2.50mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):5A per Contact
- Voltage Rating:-
