TMM-110-03-L-D

Samtec, Inc.

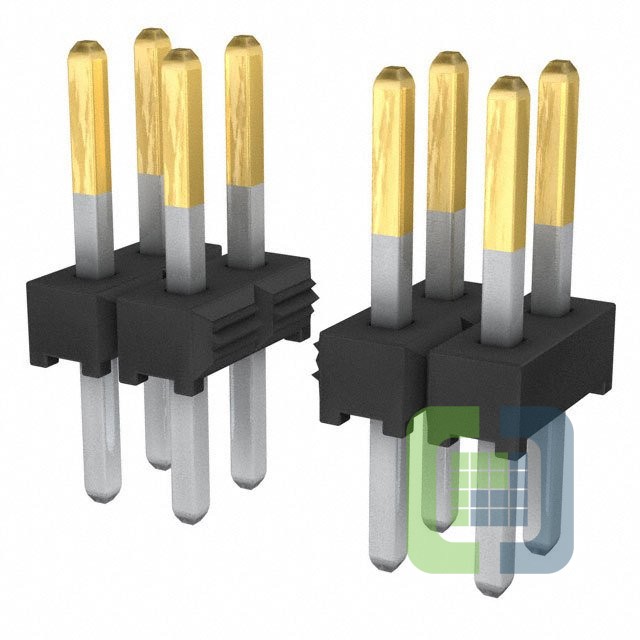

TMM-110-03-L-D Gallery image caption
In Stock: 323

Can ship immediately

Pricing:
  • 1$2.29
  • 10$2.08133
  • 100$1.78427
  • 500$1.4869
  • 1,000$1.27448
  • 5,000$1.13004

Quote It

Technical Details

  • Series:TMM
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:20
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.157" (4.00mm)



  • Contact Length - Post:0.106" (2.69mm)
  • Overall Contact Length:0.323" (8.20mm)
  • Insulation Height:0.059" (1.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):3.2A per Contact
  • Voltage Rating:-
