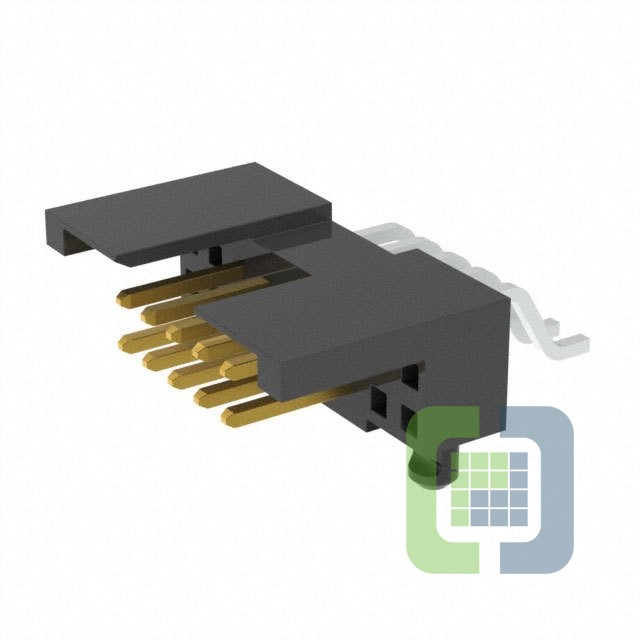

FSH-105-04-L-DH-SL
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD R/A 10POS 1.27MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet FSH-105-04-L-DH-SL Datasheet
-
ECAD Model
- Share
In Stock: 351
Can ship immediately
Pricing:
- 1$2.56
- 10$2.32151
- 100$1.98958
- 500$1.65798
- 1,000$1.42113
- 5,000$1.26006
Quote It
Technical Details
- Series:Tiger Eye™ FSH
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:10
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.145" (3.70mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.155" (3.94mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:End Shrouds, Solder Retention
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):2.6A per Contact
- Voltage Rating:-
