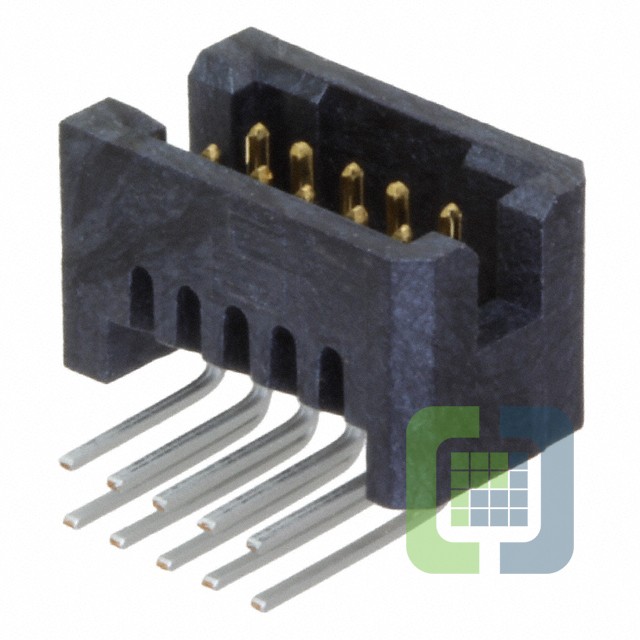

TFML-105-01-L-D-RA
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 10POS 1.27MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet TFML-105-01-L-D-RA Datasheet
-
ECAD Model
- Share
In Stock: 180
Can ship immediately
Pricing:
- 1$2.59
- 58$2.11173
- 116$2.01575
- 522$1.67981
- 1,044$1.43984
- 5,046$1.27666
Quote It
Technical Details
- Series:Tiger Eye™ TFML
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:10
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Friction Lock
- Contact Length - Mating:0.134" (3.39mm)
- Contact Length - Post:0.075" (1.91mm)
- Overall Contact Length:-
- Insulation Height:0.225" (5.72mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:15.0µin (0.38µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
