HPM-08-04-T-S

Samtec, Inc.

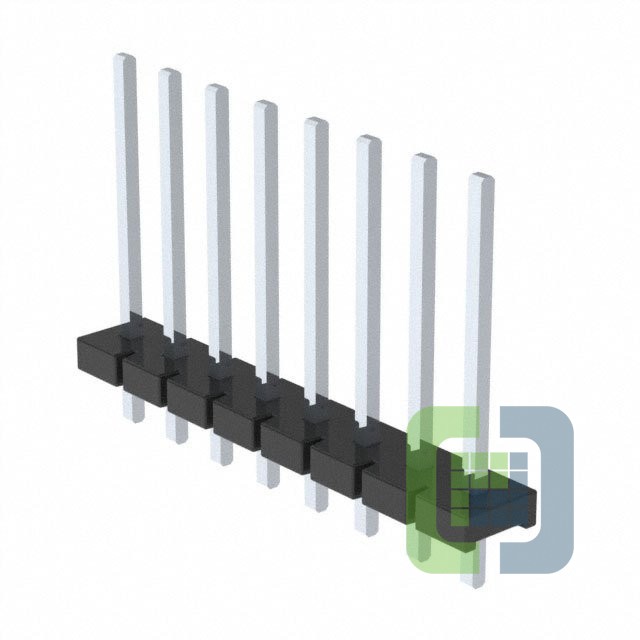

HPM-08-04-T-S Gallery image caption
In Stock: 451

Can ship immediately

Pricing:
  • 1$2.67
  • 10$2.20603
  • 100$1.65452
  • 500$1.37877
  • 1,000$1.22251
  • 5,000$1.14898

Quote It

Technical Details

  • Series:HPM
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.200" (5.08mm)
  • Number of Positions:8
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.830" (21.08mm)



  • Contact Length - Post:0.161" (4.09mm)
  • Overall Contact Length:1.091" (27.71mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:850VAC, 1200VDC
