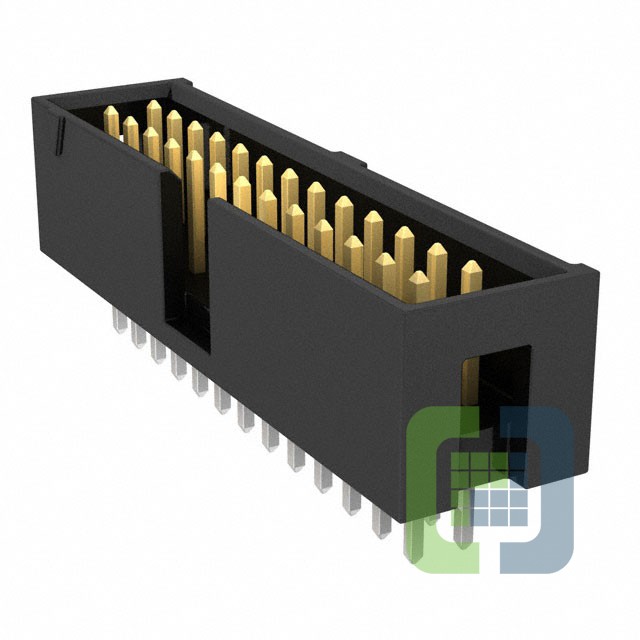

TSS-113-01-L-D
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 26POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet TSS-113-01-L-D Datasheet
-
ECAD Model
- Share
In Stock: 205
Can ship immediately
Pricing:
- 1$2.98
- 10$2.8608
- 100$2.384
- 500$2.0264
- 1,000$1.7284
- 5,000$1.5496
Quote It
Technical Details
- Series:Flex Stack, TSS
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:26
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.250" (6.35mm)
- Contact Length - Post:0.115" (2.92mm)
- Overall Contact Length:0.480" (12.19mm)
- Insulation Height:0.350" (8.89mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polybutylene Terephthalate (PBT)
- Features:Keying Slot
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:-
