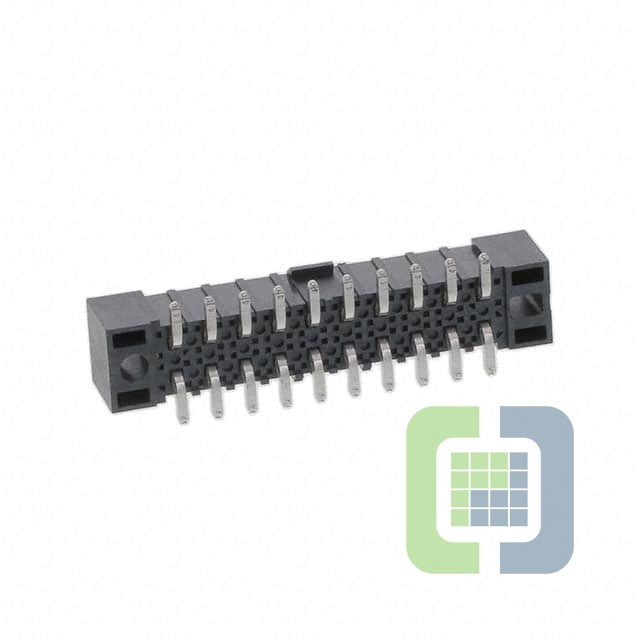

IPBT-110-H2-T-D-GP
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 20POS 4.20MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 195
Can ship immediately
Pricing:
- 1$4.57
- 10$4.3872
- 100$3.656
- 500$3.1076
- 1,000$2.6506
Quote It
Technical Details
- Series:Power Mate® IPBT
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.165" (4.20mm)
- Number of Positions:20
- Number of Rows:2
- Row Spacing - Mating:0.165" (4.20mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:0.260" (6.60mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.380" (9.65mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:Mating Flange
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:400VAC, 565VDC
