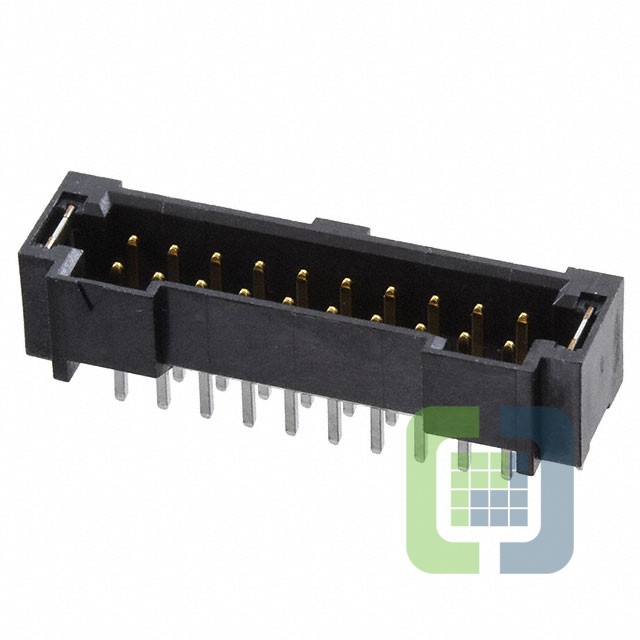

T2M-110-01-S-D-TH-WT
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 20POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet T2M-110-01-S-D-TH-WT Datasheet
-
ECAD Model
- Share
In Stock: 219
Can ship immediately
Pricing:
- 1$6.19
- 10$5.9424
- 100$4.952
- 500$4.2092
- 1,000$3.5902
Quote It
Technical Details
- Series:Tiger Eye™ T2M
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:20
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:-
- Contact Length - Post:0.117" (2.97mm)
- Overall Contact Length:0.302" (7.67mm)
- Insulation Height:0.228" (5.80mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:Solder Retention
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):3.8A
- Voltage Rating:-
