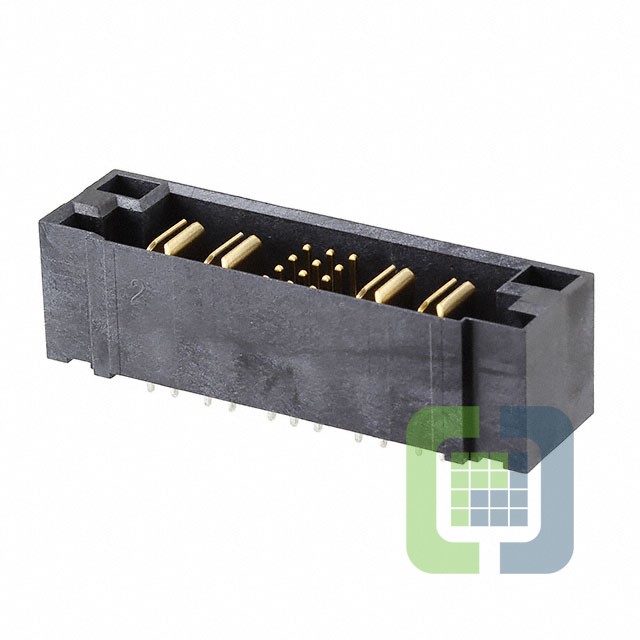

PETC-02-12-02-01-L-VT
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 16POS
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet PETC-02-12-02-01-L-VT Datasheet
-
ECAD Model
- Share
In Stock: 170
Can ship immediately
Pricing:
- 1$12.23
- 10$11.50939
- 25$11.18563
- 50$10.43051
- 100$10.07072
- 250$9.35139
- 500$9.17156
- 1,000$8.81188
Quote It
Technical Details
- Series:PowerStrip™ 40 PETC
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Blade; Male Pin
- Pitch - Mating:-
- Number of Positions:16 (12 + 4 Power)
- Number of Rows:4
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Friction Lock
- Contact Length - Mating:-
- Contact Length - Post:0.093" (2.35mm)
- Overall Contact Length:-
- Insulation Height:0.575" (14.60mm)
- Contact Shape:-
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
