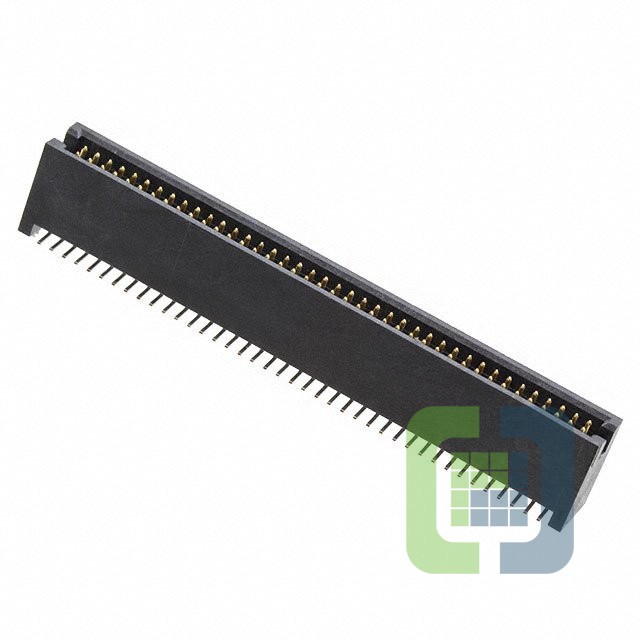

TFM-140-22-L-D-LC
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 80POS 1.27MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet TFM-140-22-L-D-LC Datasheet
-
ECAD Model
- Share
In Stock: 213
Can ship immediately
Pricing:
- 1$14.44
- 10$13.12303
- 100$11.15458
- 500$9.5142
- 1,000$8.72682
Quote It
Technical Details
- Series:Tiger Eye™ TFM
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:80
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.139" (3.53mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.360" (9.14mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:15.0µin (0.38µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:Board Lock
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):2.9A per Contact
- Voltage Rating:275VAC
