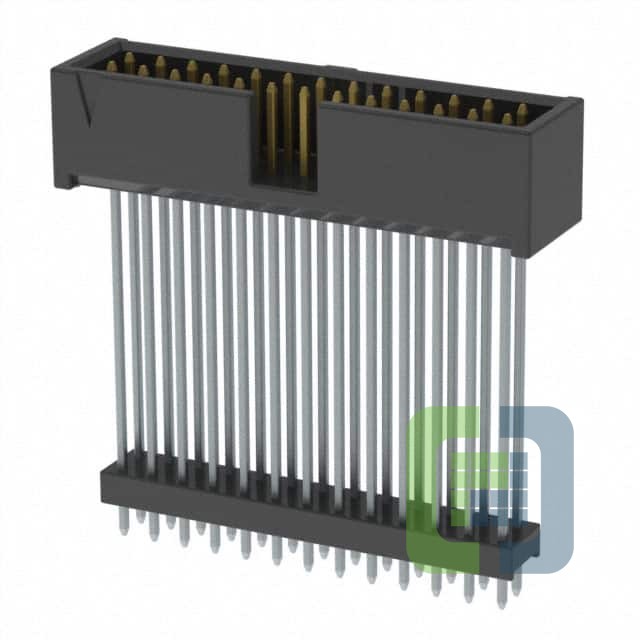

ZSS-113-09-L-D-1315
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR .100" 26POS
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 269
Can ship immediately
Pricing:
- 1$4.14
Quote It
Technical Details
- Series:Flex Stack, ZSS
- Package:Bulk
- Part Status:Active
- Connector Type:Header, Elevated
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:26
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.250" (6.35mm)
- Contact Length - Post:0.115" (2.92mm)
- Overall Contact Length:1.430" (36.32mm)
- Insulation Height:1.315" (33.40mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polyester, Glass Filled
- Features:Keying Slot
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:-
