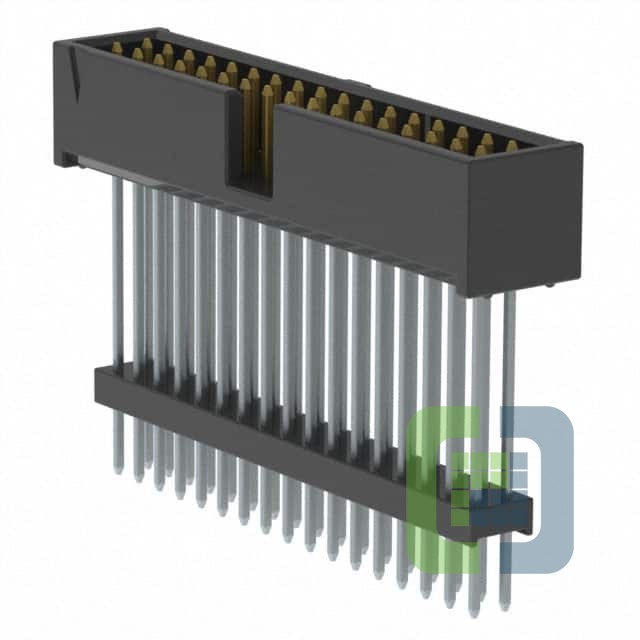

ZSS-117-07-S-D-1039

Samtec, Inc.
In Stock: 275

Can ship immediately

Pricing:
  • 1$8.53

Quote It

Technical Details

  • Series:Flex Stack, ZSS
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Elevated
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:34
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.250" (6.35mm)



  • Contact Length - Post:0.191" (4.85mm)
  • Overall Contact Length:1.230" (31.24mm)
  • Insulation Height:1.039" (26.39mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyester, Glass Filled
  • Features:Keying Slot
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-
