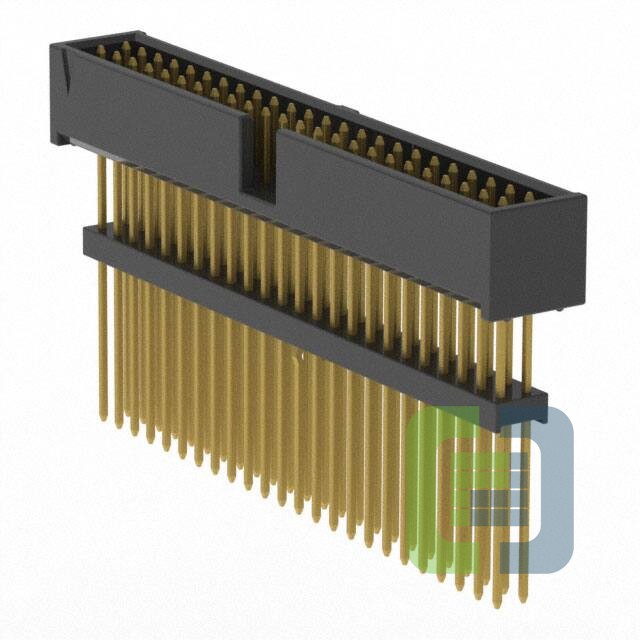

ZSS-124-08-G-D-790-LL

Technical Details

• Series:Flex Stack, ZSS
• Package:Bulk
• Part Status:Active
• Connector Type:Header, Elevated
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:48
• Number of Rows:2
• Row Spacing - Mating:0.100" (2.54mm)
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole
• Termination:Kinked Pin, Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.250" (6.35mm)

• Contact Length - Post:0.540" (13.72mm)
• Overall Contact Length:1.330" (33.78mm)
• Insulation Height:0.790" (20.07mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:10.0µin (0.25µm)
• Contact Finish - Post:Gold
• Contact Material:Phosphor Bronze
• Insulation Material:Polyester, Glass Filled
• Features:Keying Slot
• Operating Temperature:-55°C ~ 125°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):3A
• Voltage Rating:-
