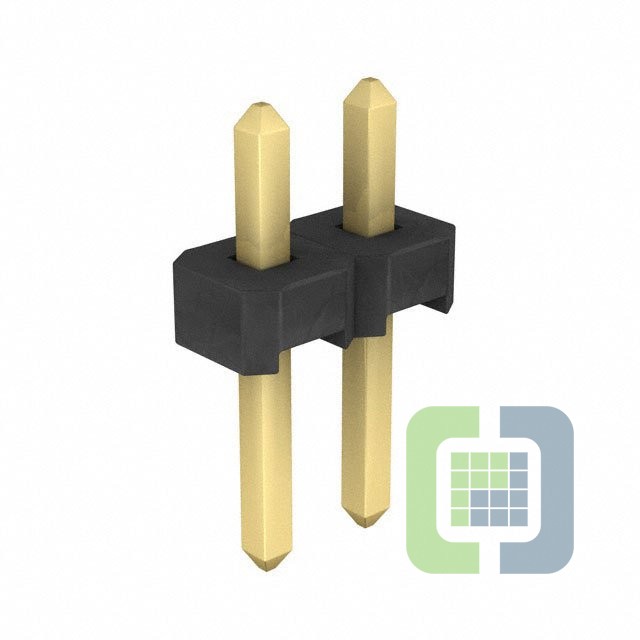

TLW-101-05-G-D
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 2POS
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet TLW-101-05-G-D Datasheet
-
ECAD Model
- Share
In Stock: 689
Can ship immediately
Pricing:
- 1$0.48
- 10$0.45382
- 25$0.40844
- 50$0.36305
- 100$0.34789
- 250$0.31767
- 500$0.30255
Quote It
Technical Details
- Series:Flex Stack, TLW
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:-
- Number of Positions:2
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.105" (2.67mm)
- Contact Length - Post:0.170" (4.32mm)
- Overall Contact Length:0.335" (8.51mm)
- Insulation Height:0.060" (1.52mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Gold
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):5.2A per Contact
- Voltage Rating:-
