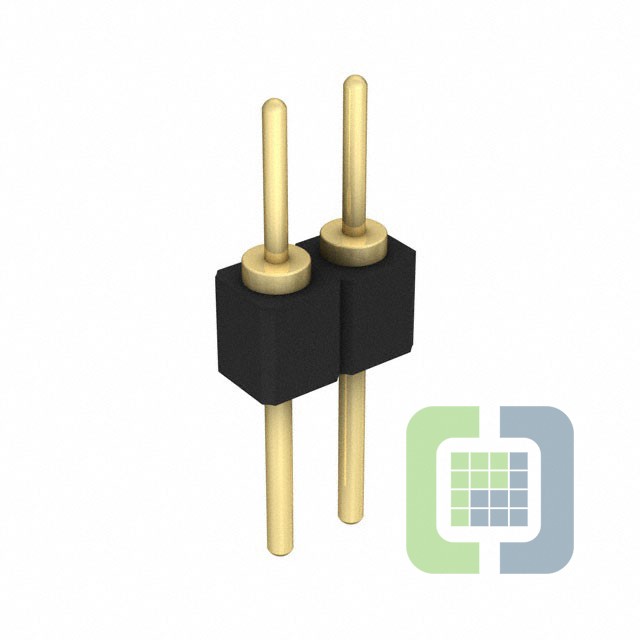

TS-102-G-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 2POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet TS-102-G-A Datasheet
-
ECAD Model
- Share
In Stock: 511
Can ship immediately
Pricing:
- 1$0.69
- 10$0.64609
- 25$0.58161
- 50$0.51712
- 100$0.49555
- 250$0.45249
- 500$0.43094
Quote It
Technical Details
- Series:TS
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:2
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.166" (4.22mm)
- Contact Length - Post:0.156" (3.96mm)
- Overall Contact Length:0.477" (12.12mm)
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Circular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:20.0µin (0.51µm)
- Contact Finish - Post:-
- Contact Material:Phosphor Bronze
- Insulation Material:Polyester, Glass Filled
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
