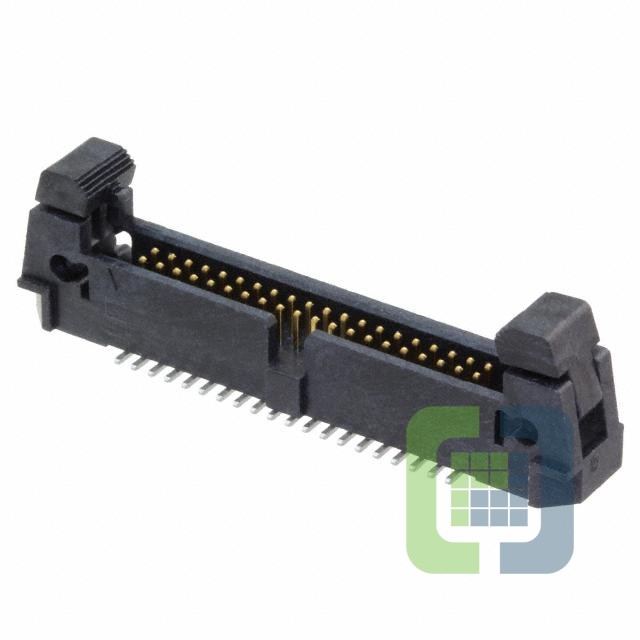

EHF-120-01-L-D-SM-P-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 40POS 1.27MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet EHF-120-01-L-D-SM-P-TR Datasheet
-
ECAD Model
- Share
In Stock: 227
Can ship immediately
Pricing:
- 1$7.34
- 150$5.814
- 300$5.202
- 750$4.59
- 1,050$4.284
- 1,500$4.1922
Quote It
Technical Details
- Series:EHF
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:40
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Latch Lock/Eject Hooks
- Contact Length - Mating:0.120" (3.05mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.325" (8.25mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
- Features:Keying Slot, Pick and Place
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):1.75A
- Voltage Rating:-
