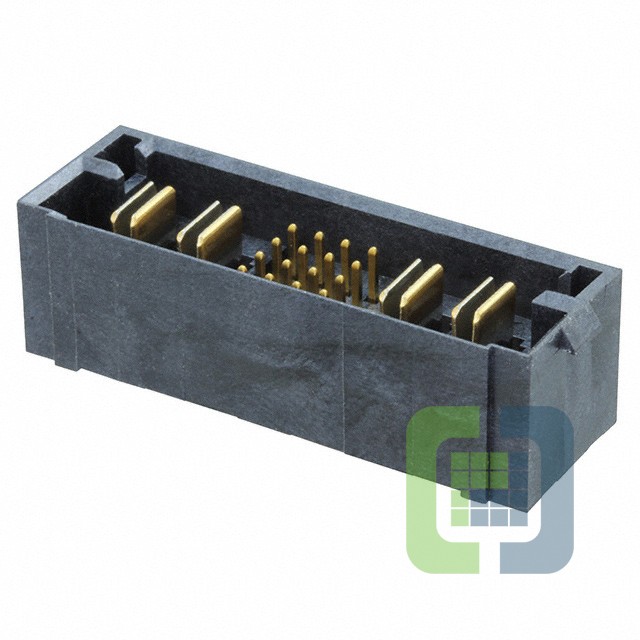

MPTC-02-16-02-6.30-01-L-V
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 20POS
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet MPTC-02-16-02-6.30-01-L-V Datasheet
-
ECAD Model
- Share
In Stock: 203
Can ship immediately
Pricing:
- 1$5.92
- 54$4.96888
- 108$4.7322
- 540$4.02237
- 1,026$3.43084
Quote It
Technical Details
- Series:PowerStrip™ 30 MPTC
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Blade; Male Pin
- Pitch - Mating:-
- Number of Positions:20 (16 + 4 Power)
- Number of Rows:4
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.107" (2.71mm)
- Overall Contact Length:-
- Insulation Height:0.448" (11.38mm)
- Contact Shape:Rectangular, Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy, Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:Board Guide
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
