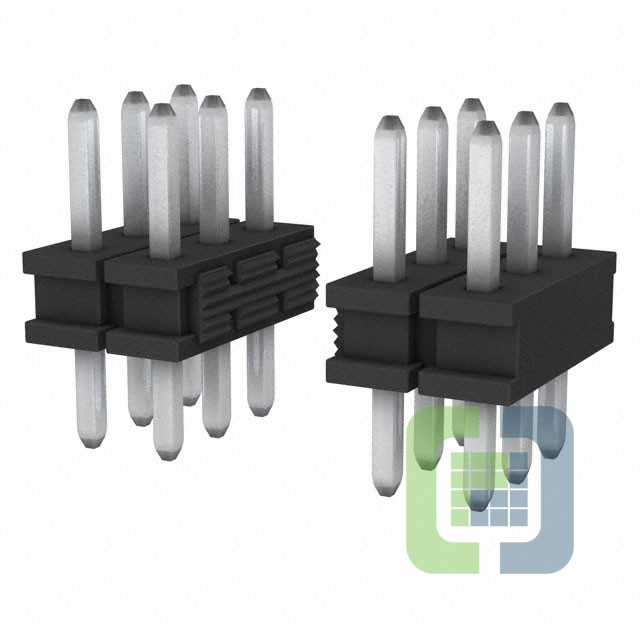

TMMH-108-01-T-T
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 24POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet TMMH-108-01-T-T Datasheet
-
ECAD Model
- Share
In Stock: 299
Can ship immediately
Pricing:
- 1$1.77
- 10$1.61092
- 100$1.38093
- 500$1.15079
- 1,000$0.98638
- 5,000$0.87459
- 10,000$0.85487
Quote It
Technical Details
- Series:TMMH
- Package:Bulk
- Part Status:Active
- Connector Type:Header, Cuttable
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:24
- Number of Rows:3
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.126" (3.20mm)
- Contact Length - Post:0.097" (2.47mm)
- Overall Contact Length:0.302" (7.67mm)
- Insulation Height:0.079" (2.00mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
