FTS-117-01-F-S

Samtec, Inc.

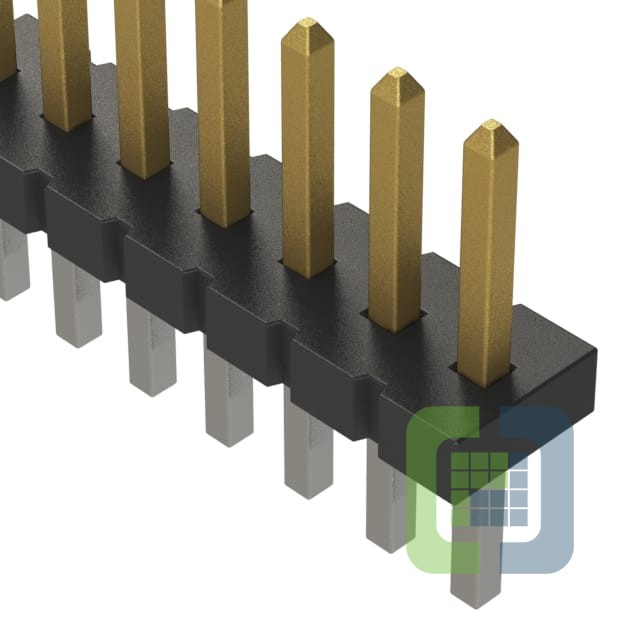

FTS-117-01-F-S Gallery image caption
In Stock: 197

Can ship immediately

Pricing:
  • 1$2.59
  • 10$2.34521
  • 100$2.01036
  • 500$1.67531
  • 1,000$1.43598
  • 5,000$1.27323

Quote It

Technical Details

  • Series:FTS
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header, Cuttable
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:17
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.120" (3.05mm)



  • Contact Length - Post:0.090" (2.29mm)
  • Overall Contact Length:0.244" (6.20mm)
  • Insulation Height:0.034" (0.86mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:3.00µin (0.076µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3.4A per Contact
  • Voltage Rating:-
