IPL1-105-01-F-D-RA-K
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant

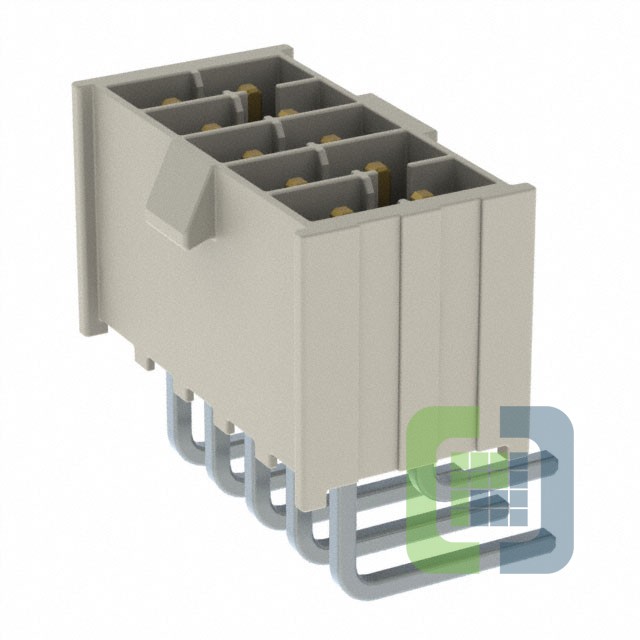

- DescriptionCONN HEADER R/A 10POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet IPL1-105-01-F-D-RA-K Datasheet
-
ECAD Model
- Share
In Stock: 453
Can ship immediately
Pricing:
- 1$3.48
- 10$3.3408
- 100$2.784
- 500$2.3664
- 1,000$2.0184
- 5,000$1.8096
Quote It
Technical Details
- Series:Mini Mate® IPL1
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:10
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:0.215" (5.46mm)
- Contact Length - Post:0.085" (2.16mm)
- Overall Contact Length:-
- Insulation Height:0.290" (7.37mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:3.00µin (0.076µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):-
- Voltage Rating:675VAC, 954VDC
