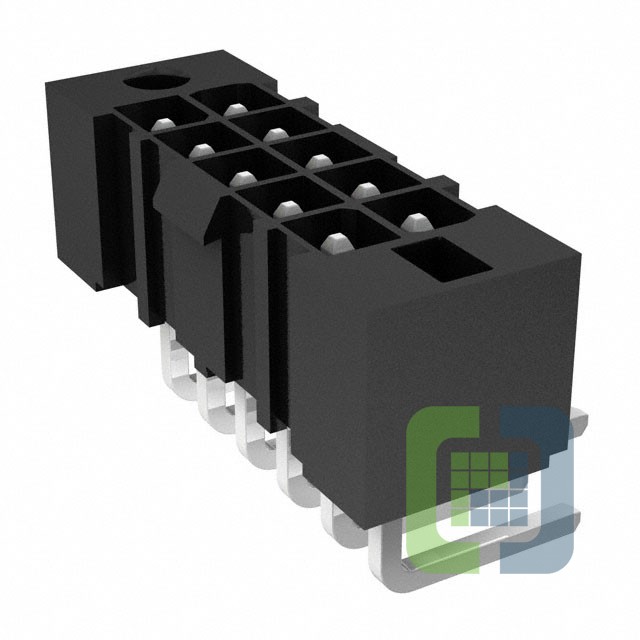

IPBT-105-H1-T-D-RA-GP
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 10POS 4.2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet IPBT-105-H1-T-D-RA-GP Datasheet
-
ECAD Model
- Share
In Stock: 331
Can ship immediately
Pricing:
- 1$3.66
- 16$3.50798
- 112$2.92332
- 512$2.48483
- 1,008$2.11941
- 5,008$1.90016
Quote It
Technical Details
- Series:Power Mate® IPBT
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.165" (4.20mm)
- Number of Positions:10
- Number of Rows:2
- Row Spacing - Mating:0.165" (4.20mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:0.260" (6.60mm)
- Contact Length - Post:0.147" (3.73mm)
- Overall Contact Length:-
- Insulation Height:0.424" (10.77mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:Mating Flange
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:400VAC, 565VDC
