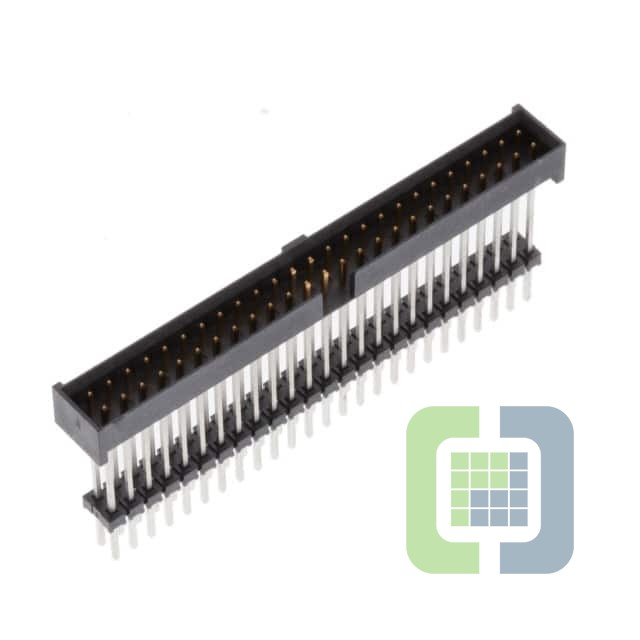

ZLTMM-125-71-L-D-625
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN BRD STACK 2MM 50POS
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 163
Can ship immediately
Pricing:
- 1$11.29
Quote It
Technical Details
- Series:Flex Stack, ZLTMM
- Package:Bulk
- Part Status:Active
- Connector Type:Header, Elevated
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:50
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.120" (3.05mm)
- Contact Length - Post:0.210" (5.33mm)
- Overall Contact Length:0.830" (21.08mm)
- Insulation Height:0.625" (15.88mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polyamide (PA), Nylon
- Features:Keying Slot
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
