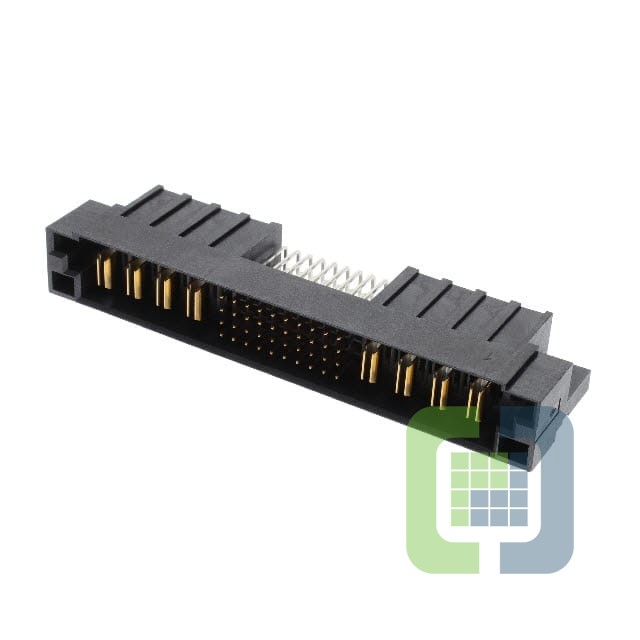

PETC-04-40-04-01-S-RA-LC

Technical Details

• Series:PowerStrip™ 40 PETC
• Package:Tray
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Blade; Male Pin
• Pitch - Mating:-
• Number of Positions:48 (40 + 8 Power)
• Number of Rows:4
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Board
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:Friction Lock
• Contact Length - Mating:-

• Contact Length - Post:-
• Overall Contact Length:-
• Insulation Height:0.571" (14.50mm)
• Contact Shape:-
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:30.0µin (0.76µm)
• Contact Finish - Post:Tin
• Contact Material:Copper Alloy
• Insulation Material:Liquid Crystal Polymer (LCP)
• Features:Board Lock
• Operating Temperature:-55°C ~ 125°C
• Ingress Protection:-
• Material Flammability Rating:-
• Insulation Color:Black
• Current Rating (Amps):-
• Voltage Rating:-
