TMM-111-01-G-S
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 11POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet TMM-111-01-G-S Datasheet
-
ECAD Model
- Share
In Stock: 187
Can ship immediately
Pricing:
- 1$2.01
- 10$1.82283
- 25$1.71137
- 50$1.63693
- 100$1.56248
- 250$1.41364
- 500$1.30203
Quote It
Technical Details
- Series:TMM
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:11
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.126" (3.20mm)
- Contact Length - Post:0.138" (3.50mm)
- Overall Contact Length:0.323" (8.20mm)
- Insulation Height:0.059" (1.50mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:20.0µin (0.51µm)
- Contact Finish - Post:Gold
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):3.2A per Contact
- Voltage Rating:-
Related Products
CONN HEADER SMD 10POS 1.27MM
- 1: $2.48464
- 125: $2.23875

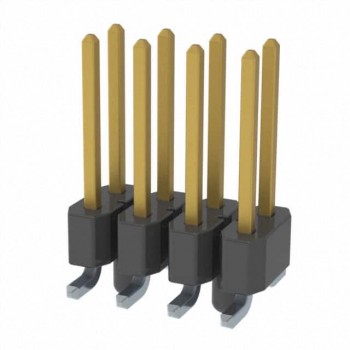

CONN HEADER SMD 8POS 1.27MM
