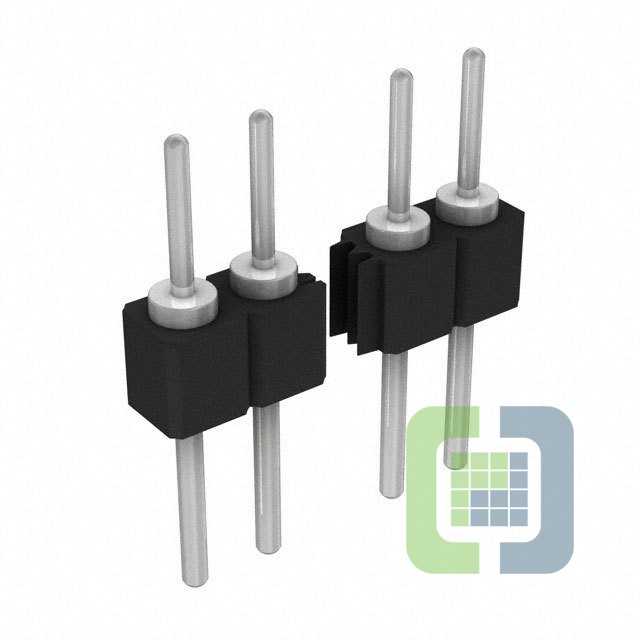

TS-119-T-A

Samtec, Inc.
In Stock: 154

Can ship immediately

Pricing:
  • 1$2.69
  • 10$2.43832
  • 25$2.28916
  • 50$2.18964
  • 100$2.09023
  • 250$1.89113
  • 500$1.74183

Quote It

Technical Details

  • Series:TS
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:19
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.166" (4.22mm)



  • Contact Length - Post:0.156" (3.96mm)
  • Overall Contact Length:0.477" (12.12mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:200.0µin (5.08µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-
