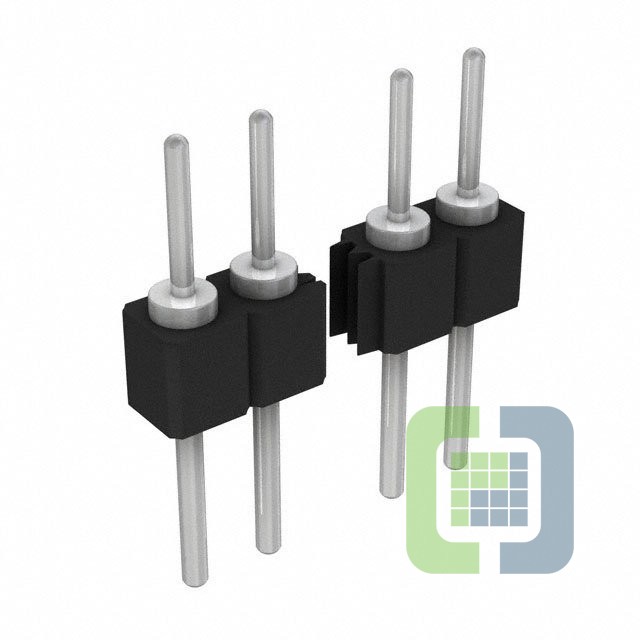

TS-127-T-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 27POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet TS-127-T-A Datasheet
-
ECAD Model
- Share
In Stock: 200
Can ship immediately
Pricing:
- 1$3.82
- 10$3.6702
- 25$3.3646
- 50$3.2118
- 100$3.05875
- 250$2.67645
- 500$2.59997
Quote It
Technical Details
- Series:TS
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:27
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.166" (4.22mm)
- Contact Length - Post:0.156" (3.96mm)
- Overall Contact Length:0.477" (12.12mm)
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Circular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:200.0µin (5.08µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polyester, Glass Filled
- Features:-
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
