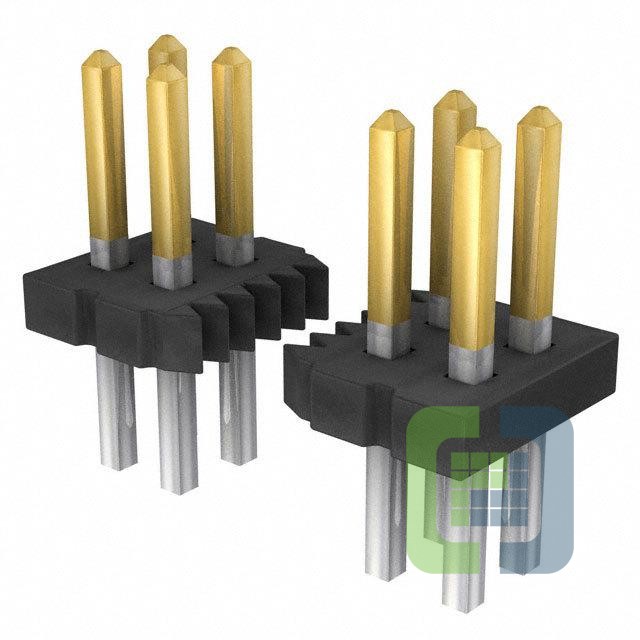

FTS-111-01-S-D

Technical Details

• Series:FTS
• Package:Tube
• Part Status:Active
• Connector Type:Header, Cuttable
• Contact Type:Male Pin
• Pitch - Mating:0.050" (1.27mm)
• Number of Positions:22
• Number of Rows:2
• Row Spacing - Mating:0.050" (1.27mm)
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Unshrouded
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.120" (3.05mm)

• Contact Length - Post:0.090" (2.29mm)
• Overall Contact Length:0.244" (6.20mm)
• Insulation Height:0.034" (0.86mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:30.0µin (0.76µm)
• Contact Finish - Post:Tin
• Contact Material:Phosphor Bronze
• Insulation Material:Liquid Crystal Polymer (LCP)
• Features:-
• Operating Temperature:-55°C ~ 125°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):3.4A per Contact
• Voltage Rating:-
