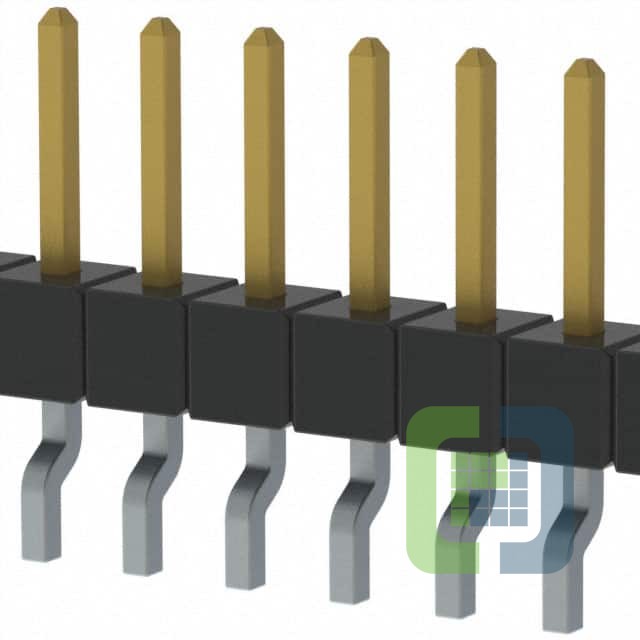

MMT-115-02-S-SH-K-TR

Technical Details

• Series:MMT
• Package:Tape & Reel (TR)
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.079" (2.00mm)
• Number of Positions:15
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Unshrouded
• Mounting Type:Surface Mount, Right Angle
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.175" (4.45mm)

• Contact Length - Post:-
• Overall Contact Length:-
• Insulation Height:0.079" (2.00mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:30.0µin (0.76µm)
• Contact Finish - Post:Tin
• Contact Material:Phosphor Bronze
• Insulation Material:Liquid Crystal Polymer (LCP)
• Features:Pick and Place
• Operating Temperature:-55°C ~ 125°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):3A
• Voltage Rating:-
