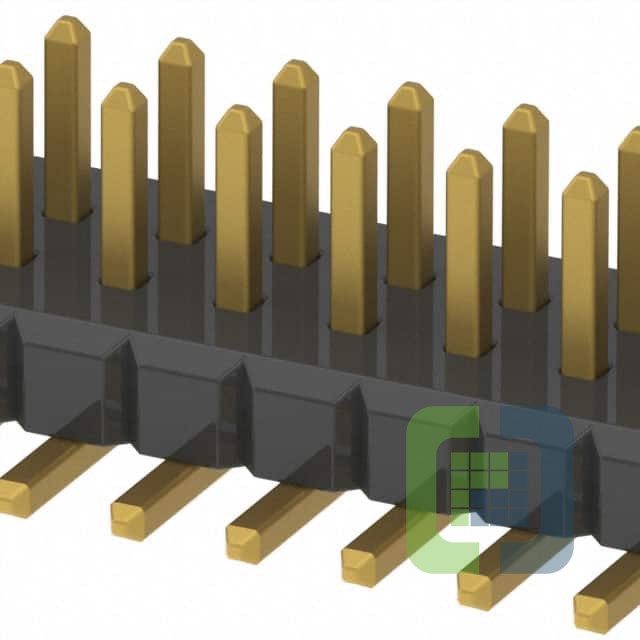

FTM-111-03-G-DV

Technical Details

• Series:FTM
• Package:Tube
• Part Status:Active
• Connector Type:Header, Cuttable
• Contact Type:Male Pin
• Pitch - Mating:0.039" (1.00mm)
• Number of Positions:22
• Number of Rows:2
• Row Spacing - Mating:0.039" (1.00mm)
• Number of Positions Loaded:All
• Style:Board to Board
• Shrouding:Unshrouded
• Mounting Type:Surface Mount
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.065" (1.65mm)

• Contact Length - Post:-
• Overall Contact Length:-
• Insulation Height:0.038" (0.97mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:-
• Contact Material:Phosphor Bronze
• Insulation Material:Liquid Crystal Polymer (LCP)
• Features:-
• Operating Temperature:-55°C ~ 125°C
• Ingress Protection:-
• Material Flammability Rating:-
• Insulation Color:Black
• Current Rating (Amps):2.8A per Contact
• Voltage Rating:-
