BKT-129-01-L-V-S-A-P-TR

Samtec, Inc.
In Stock: 100

Can ship immediately

Pricing:
  • 1$4.97727
  • 125$4.97727

Quote It

Technical Details

  • Series:BKT
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.039" (1.00mm)
  • Number of Positions:29
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.065" (1.65mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.154" (3.90mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Board Guide, End Shrouds, Pick and Place
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.8A per Contact
  • Voltage Rating:-

Related Products


TFM-115-02-S-D-SN

CONN HEADER SMD 30POS 1.27MM

  • 1: $4.84800
  • 500: $4.84800

TFM-118-01-S-D

CONN HEADER VERT 36POS 1.27MM

  • 1: $4.81568
  • 500: $4.81568

TFM-118-01-S-D-A

CONN HEADER VERT 36POS 1.27MM

  • 1: $4.81568
  • 500: $4.81568

EHT-108-01-LM-D

CONN HEADER VERT 16POS 2MM

  • 1: $6.71333

EHT-112-01-F-D-SR

CONN HEADER VERT 24POS 2MM

  • 1: $6.71385

TSW-121-07-S-D

CONN HEADER VERT 42POS 2.54MM

TSW-121-07-S-D Datasheet
  • 1: $5.14000
  • 10: $4.93177
  • 25: $4.52057

TSW-142-07-S-S

CONN HEADER VERT 42POS 2.54MM

TSW-142-07-S-S Datasheet
  • 1: $5.14000
  • 10: $4.93177
  • 25: $4.52057

TSW-141-14-S-S

CONN HEADER VERT 41POS 2.54MM

TSW-141-14-S-S Datasheet
  • 1: $5.14000
  • 10: $4.93331
  • 25: $4.52189

ESHF-125-01-L-D-SM-LC-TR

CONN HEADER SMD 50POS 1.27MM

ESHF-125-01-L-D-SM-LC-TR Datasheet
  • 1: $6.80136
  • 125: $6.80136

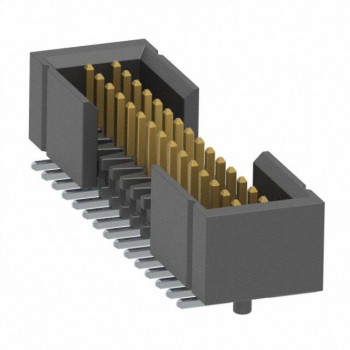

FTMH-115-02-F-DV-ES-A-P-TR
