EJH-107-02-L-D-TH
Samtec, Inc.- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 14POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 118
Can ship immediately
Pricing:
- 1$6.41143
Quote It
Technical Details
- Series:EJH
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:14
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Latch Lock/Eject Hooks
- Contact Length - Mating:0.225" (5.72mm)
- Contact Length - Post:0.120" (3.05mm)
- Overall Contact Length:-
- Insulation Height:0.500" (12.70mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:Keying Slot
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Natural
- Current Rating (Amps):3A
- Voltage Rating:-
Related Products

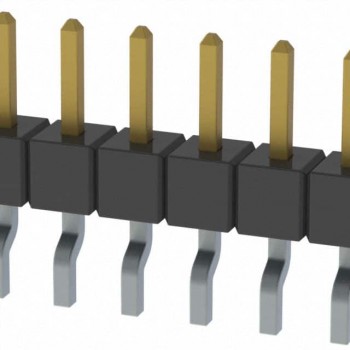

CONN HEADER SMD R/A 40POS 2MM
