MTLW-125-08-F-D-315
Samtec, Inc.- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 50POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 151
Can ship immediately
Pricing:
- 1$6.84
Quote It
Technical Details
- Series:Flex Stack, MTLW
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:50
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.315" (8.00mm)
- Contact Length - Post:0.155" (3.94mm)
- Overall Contact Length:0.530" (13.46mm)
- Insulation Height:0.060" (1.52mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:3.00µin (0.076µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):5.2A per Contact
- Voltage Rating:-
Related Products
CONN HEADER SMD 16POS 2.54MM
- 1: $6.79000
.050" (1.27MM) MICRO HEADER
- 1: $6.47000
.050" (1.27MM) MICRO HEADER
- 1: $6.47000
.050" (1.27MM) MICRO HEADER
- 1: $6.45000
.050" (1.27MM) MICRO HEADER
- 1: $6.50000
.050" (1.27MM) MICRO HEADER
- 1: $6.45000
.050" (1.27MM) MICRO HEADER
- 1: $6.45000
2.00 MM SHROUDED VARIABLE STACK
- 1: $7.03000

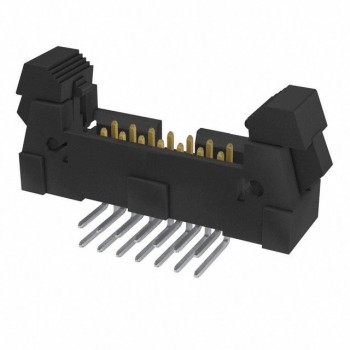

CONN HEADER R/A 14POS 2MM
