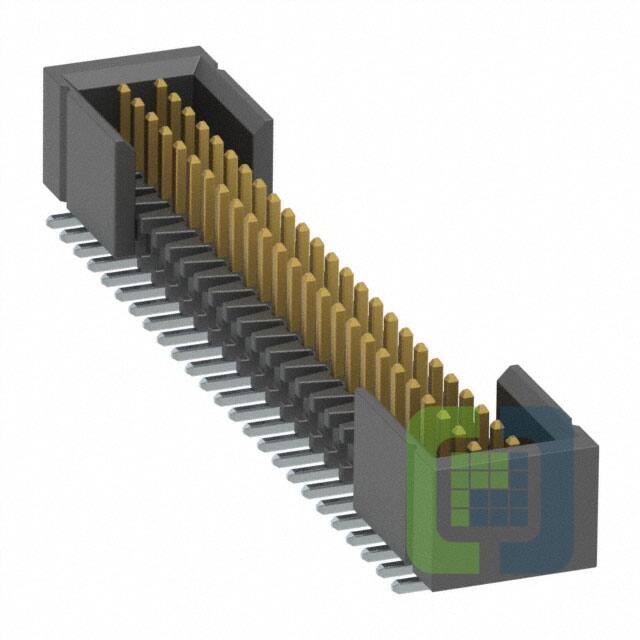

FTMH-125-02-F-DV-ES-TR

Samtec, Inc.
In Stock: 138

Can ship immediately

Pricing:
  • 1$5.98728
  • 125$5.63963

Quote It

Technical Details

  • Series:FTMH
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.039" (1.00mm)
  • Number of Positions:50
  • Number of Rows:2
  • Row Spacing - Mating:0.039" (1.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.075" (1.90mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.059" (1.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:3.00µin (0.076µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:End Shrouds
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.8A per Contact
  • Voltage Rating:-
