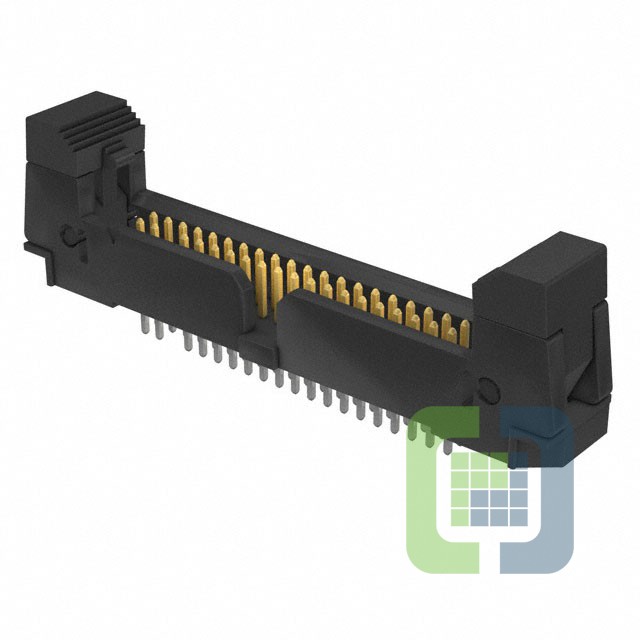

EHF-120-01-L-D-05

Technical Details

• Series:EHF
• Package:Tube
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.050" (1.27mm)
• Number of Positions:40
• Number of Rows:2
• Row Spacing - Mating:0.050" (1.27mm)
• Number of Positions Loaded:39
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Latch Lock/Eject Hooks
• Contact Length - Mating:0.120" (3.05mm)

• Contact Length - Post:0.107" (2.71mm)
• Overall Contact Length:0.350" (8.89mm)
• Insulation Height:0.325" (8.25mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:10.0µin (0.25µm)
• Contact Finish - Post:Tin
• Contact Material:Phosphor Bronze
• Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
• Features:Keying Slot
• Operating Temperature:-55°C ~ 125°C
• Ingress Protection:-
• Material Flammability Rating:-
• Insulation Color:Black
• Current Rating (Amps):1.75A
• Voltage Rating:-
