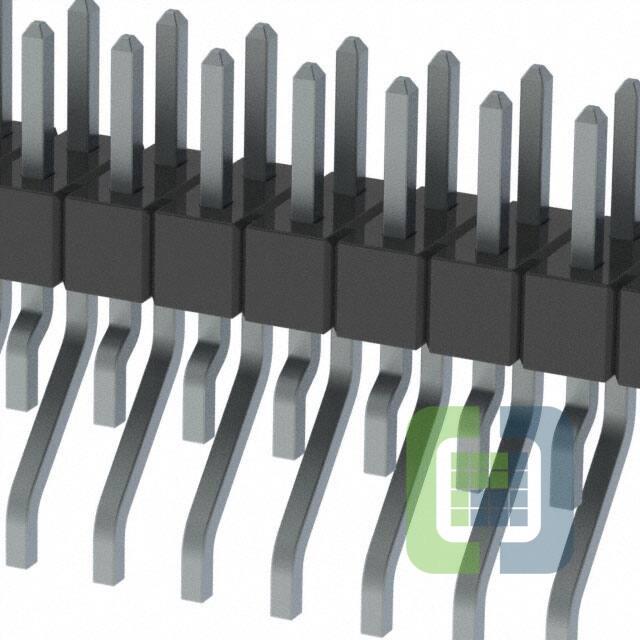

MMT-133-01-T-DH-P
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD R/A 66POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 200
Can ship immediately
Pricing:
- 1$9.36
Quote It
Technical Details
- Series:MMT
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:66
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.126" (3.20mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.157" (4.00mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:Pick and Place
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:-
