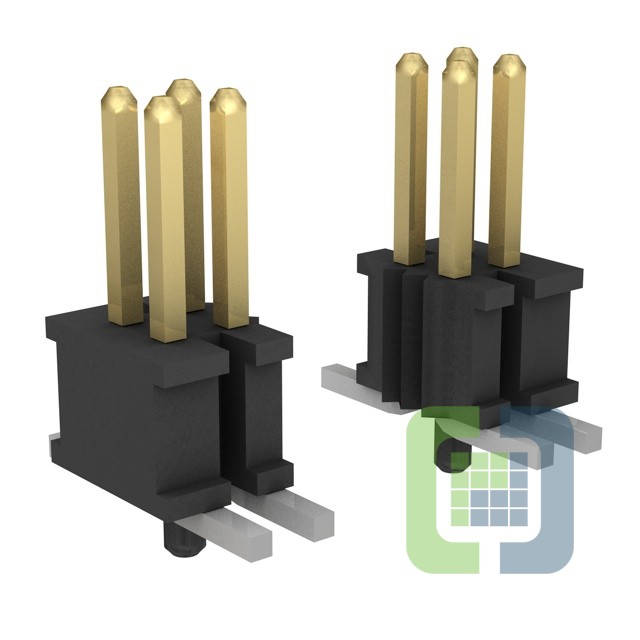

FTSH-127-01-L-DV-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 54POS 1.27MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet FTSH-127-01-L-DV-A Datasheet
-
ECAD Model
- Share
In Stock: 125
Can ship immediately
Pricing:
- 1$9.83
Quote It
Technical Details
- Series:FTSH
- Package:Tube
- Part Status:Active
- Connector Type:Header, Cuttable
- Contact Type:Male Pin
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:54
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.120" (3.05mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.099" (2.51mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:Board Guide
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3.4A per Contact
- Voltage Rating:-
