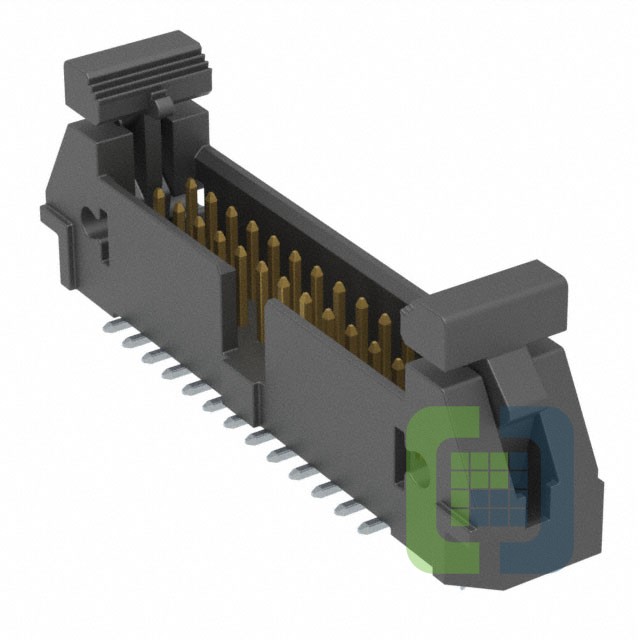

EJH-113-01-F-D-SM-LC-K

Samtec, Inc.
In Stock: 143

Can ship immediately

Pricing:
  • 1$9.399

Quote It

Technical Details

  • Series:EJH
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:26
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Lock/Eject Hooks
  • Contact Length - Mating:0.225" (5.72mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.500" (12.70mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:3.00µin (0.076µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Board Lock, Keying Slot, Pick and Place
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-
