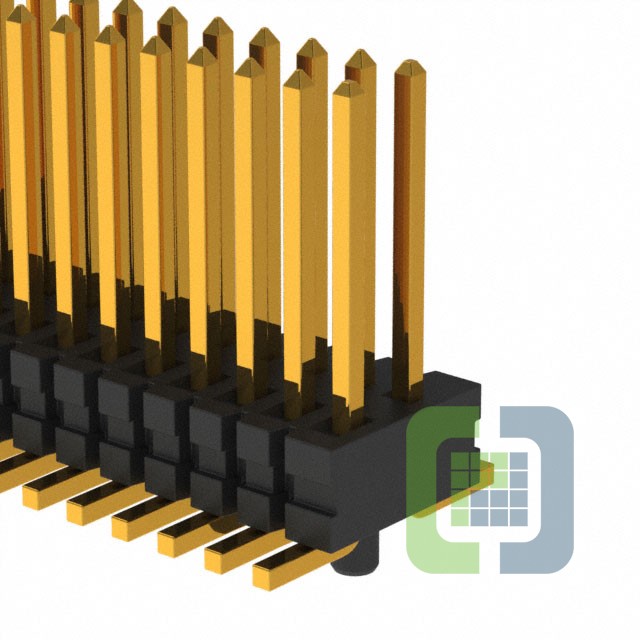

FTE-130-02-G-DV-A-P-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 60POS 0.8MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet FTE-130-02-G-DV-A-P-TR Datasheet
-
ECAD Model
- Share
In Stock: 162
Can ship immediately
Pricing:
- 1$8.24008
- 125$7.7697
Quote It
Technical Details
- Series:FTE
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.031" (0.80mm)
- Number of Positions:60
- Number of Rows:2
- Row Spacing - Mating:0.047" (1.20mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.175" (4.45mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.055" (1.40mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Gold
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:Board Guide, Pick and Place
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):2.7A per Contact
- Voltage Rating:-
