TMS-150-56-S-S
Samtec, Inc.- Lifecycle status Active
- RoHS RoHS Compliant
- Description.050" (1.27MM) MICRO HEADER
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 167
Can ship immediately
Pricing:
- 1$10.64
Quote It
Technical Details
- Series:TMS
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:50
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.405" (10.29mm)
- Contact Length - Post:0.120" (3.05mm)
- Overall Contact Length:0.625" (15.88mm)
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):5A per Contact
- Voltage Rating:-
Related Products

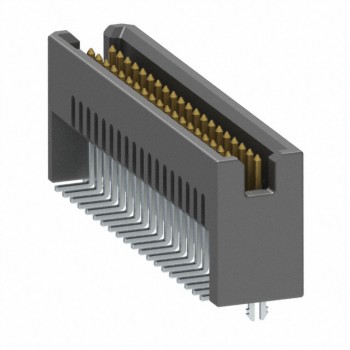

CONN HEADER SMD 56POS 1.27MM
- 1: $7.89366
- 500: $6.91556
CONN HEADER SMD 40POS 1.27MM
- 1: $8.42696
- 125: $7.35949

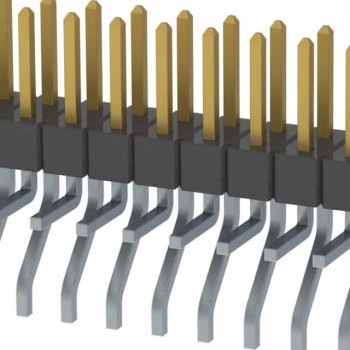

CONN HEADER SMD R/A 34POS 2MM
- 1: $8.46432
- 125: $7.69307

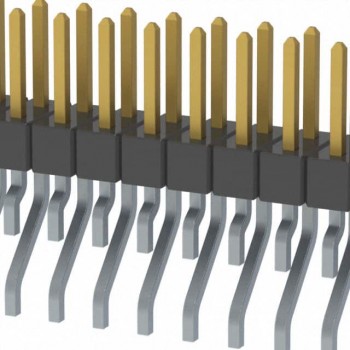

CONN HEADER SMD R/A 34POS 2MM
