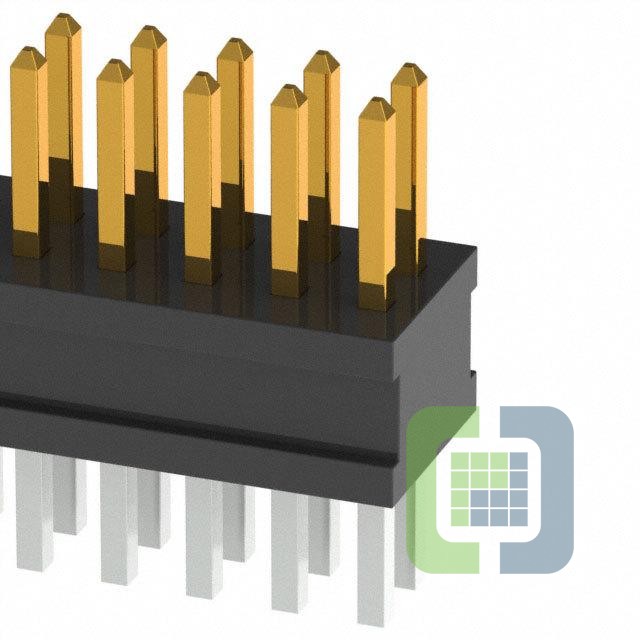

FTSH-131-02-F-D

Technical Details

• Series:FTSH
• Package:Bulk
• Part Status:Active
• Connector Type:Header, Cuttable
• Contact Type:Male Pin
• Pitch - Mating:0.050" (1.27mm)
• Number of Positions:62
• Number of Rows:2
• Row Spacing - Mating:0.050" (1.27mm)
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Unshrouded
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.075" (1.90mm)

• Contact Length - Post:0.090" (2.29mm)
• Overall Contact Length:0.265" (6.73mm)
• Insulation Height:0.099" (2.51mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:3.00µin (0.076µm)
• Contact Finish - Post:Tin
• Contact Material:Phosphor Bronze
• Insulation Material:Liquid Crystal Polymer (LCP)
• Features:-
• Operating Temperature:-55°C ~ 125°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):3.4A per Contact
• Voltage Rating:-
